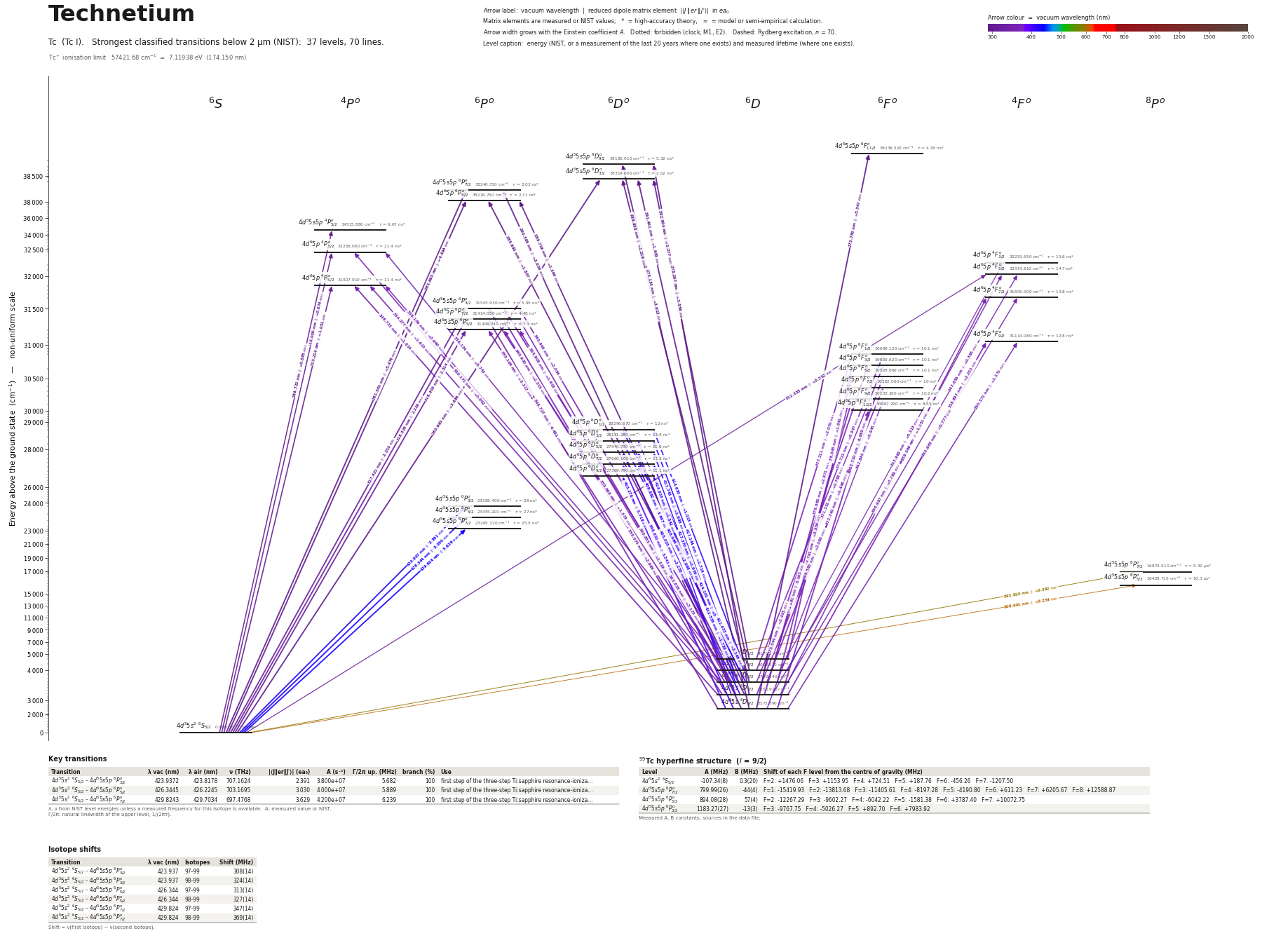

Technetium energy level diagram

Energy levels and transitions of neutral technetium (Tc I): the 70 strongest classified lines below 2 µm from the NIST Atomic Spectra Database and the 37 levels they connect, each line with its vacuum wavelength, frequency and, for 70 of them, the reduced dipole matrix element derived from the NIST transition rate. Measured lifetimes, transition rates, hyperfine constants and isotope shifts from the literature are included, each with its citation.

Hover a line or a level to isolate it, click to keep it selected. Scroll to zoom, drag to move.

Download: diagram (PDF) diagram (SVG) transitions (CSV) levels (CSV) source code

Key transitions of technetium

λ, ν from NIST level energies unless a measured frequency for this isotope is available. A: measured value or NIST. Γ/2π: natural linewidth of the upper level, 1/(2πτ).

⁹⁹Tc hyperfine structure (I = 9/2)

Measured A, B constants; sources in the data file.

Isotope shifts

Shift = ν(first isotope) − ν(second isotope).

Closed and nearly closed transitions of technetium

A transition is closed when its upper level can decay only to the level it was excited from, so the atom keeps scattering photons. “closed”: among the levels NIST lists, no other level below the upper level has the opposite parity and |ΔJ| ≤ 1, so no other electric-dipole decay exists. Otherwise the leak is the sum of the branching ratios of the other decay lines of the upper level (or 1 − branching ratio where that of the line itself has been measured), and the number of photons is 1 / leak. “≥” and “≤”: at least one possible decay path has no listed rate, so the leak is a lower limit. These numbers are derived from the branching ratios, lifetimes and rates of this page, not measured as such; the tag names the weakest of the inputs, * marks theory and ≈ a model or semi-empirical calculation. Listed: lines that start on the ground level or on a metastable level and leak at most 10 %, unless more than three possible decay paths have no listed rate. Fine-structure levels only: hyperfine and Zeeman dark states and forbidden decays without a listed rate are not considered. Select a line in the diagram for the full list of its leak channels.

Listed Tc transitions below 2 µm

Reduced dipole matrix elements follow the convention A = ω³|d|²/(3πε₀ħc³(2J′+1)), with J′ the upper level. Tags show where a number comes from: measured, NIST compilation, high-accuracy theory, a semi-empirical calculation (Kurucz line list, used only where no measurement or NIST value exists; typically within a factor 2), or a model calculation.

Tc energy levels

Tc⁺ ionisation limit 57421.68 cm⁻¹ = 7.11938 eV (174.150 nm)

Sources

• Kron, Beerwerth, Raeder, Fritzsche, Heinke, Schoenberg, Truemper, Wendt, Phys. Rev. C 102…
• Kurucz semi-empirical calculation (K17), life4300.dat
• Kurucz, R. L., Can. J. Phys. 89, 417 (2011); semi-empirical line list gf4300.pos of 2017-…
• NIST ASD
• NIST ASD level energies

Hyperfine constants and isotope shifts are from resonance ionization spectroscopy with ~100 MHz resolution (Kron et al. 2020, open access via the GSI repository). Isotope shifts are nu(first) - nu(second). All level lifetimes in this file are THEORY (Kurucz) because no measurement exists; treat them as ~25 % estimates. nuclear_moments is an extra top-level block (not in the schema) with the moments derived in the same paper.
