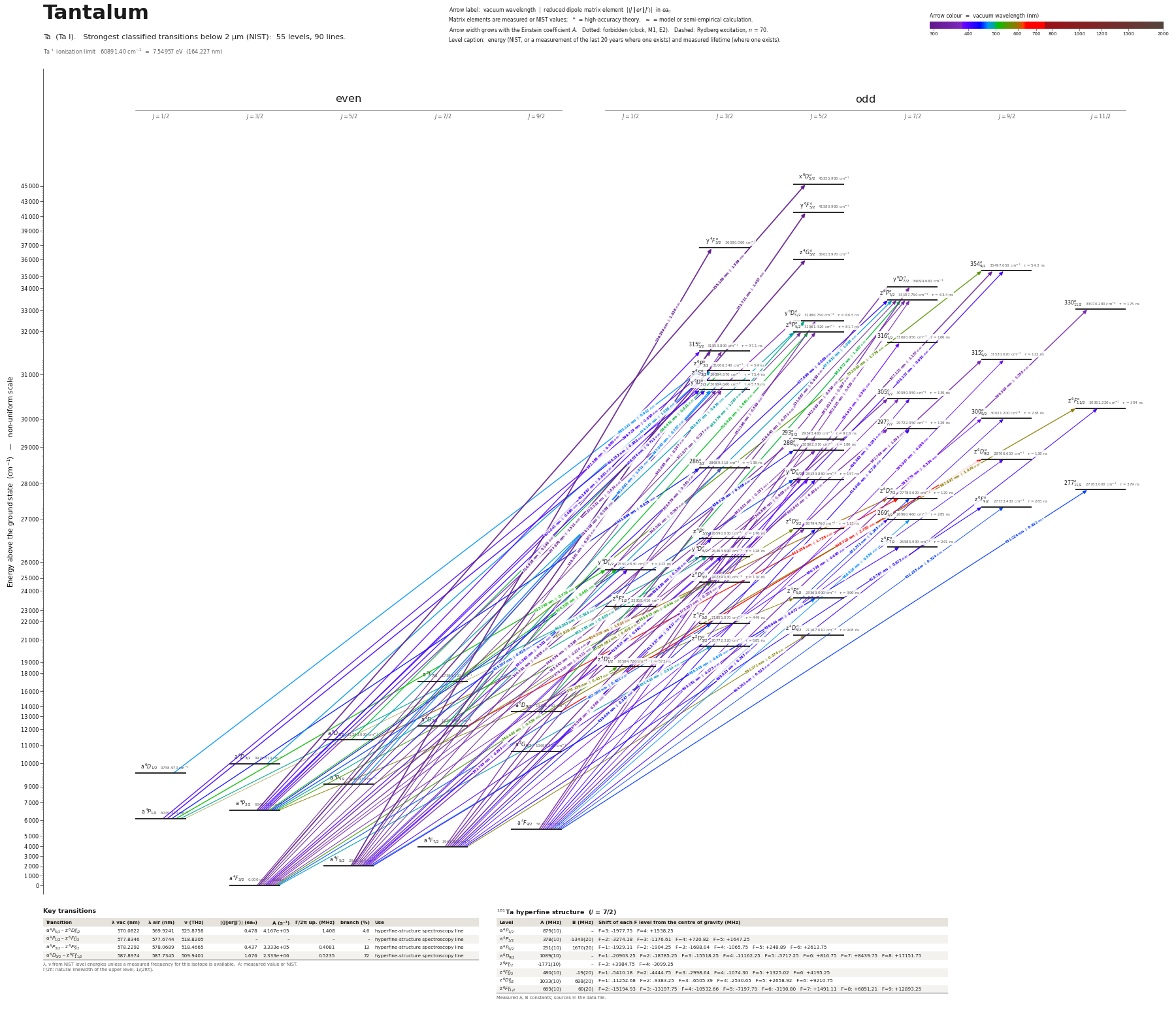

Tantalum energy level diagram

Energy levels and transitions of neutral tantalum (Ta I): the 90 strongest classified lines below 2 µm from the NIST Atomic Spectra Database and the 55 levels they connect, each line with its vacuum wavelength, frequency and, for 89 of them, the reduced dipole matrix element derived from the NIST transition rate. Measured lifetimes, transition rates, hyperfine constants and isotope shifts from the literature are included, each with its citation.

Hover a line or a level to isolate it, click to keep it selected. Scroll to zoom, drag to move.

Download: diagram (PDF) diagram (SVG) transitions (CSV) levels (CSV) source code

Key transitions of tantalum

λ, ν from NIST level energies unless a measured frequency for this isotope is available. A: measured value or NIST. Γ/2π: natural linewidth of the upper level, 1/(2πτ).

¹⁸¹Ta hyperfine structure (I = 7/2)

Measured A, B constants; sources in the data file.

Closed and nearly closed transitions of tantalum

A transition is closed when its upper level can decay only to the level it was excited from, so the atom keeps scattering photons. “closed”: among the levels NIST lists, no other level below the upper level has the opposite parity and |ΔJ| ≤ 1, so no other electric-dipole decay exists. Otherwise the leak is the sum of the branching ratios of the other decay lines of the upper level (or 1 − branching ratio where that of the line itself has been measured), and the number of photons is 1 / leak. “≥” and “≤”: at least one possible decay path has no listed rate, so the leak is a lower limit. These numbers are derived from the branching ratios, lifetimes and rates of this page, not measured as such; the tag names the weakest of the inputs, * marks theory and ≈ a model or semi-empirical calculation. Listed: lines that start on the ground level or on a metastable level and leak at most 10 %, unless more than three possible decay paths have no listed rate. Fine-structure levels only: hyperfine and Zeeman dark states and forbidden decays without a listed rate are not considered. Select a line in the diagram for the full list of its leak channels.

Listed Ta transitions below 2 µm

Reduced dipole matrix elements follow the convention A = ω³|d|²/(3πε₀ħc³(2J′+1)), with J′ the upper level. Tags show where a number comes from: measured, NIST compilation, high-accuracy theory, or a model calculation.

Ta energy levels

Ta⁺ ionisation limit 60891.40 cm⁻¹ = 7.54957 eV (164.227 nm)

Sources

• Den Hartog, Duquette, Lawler, J. Opt. Soc. Am. B 4, 48 (1987), Table 1
• Kumar & Bist, J. Opt. Soc. Am. B 10, 566 (1993), Table 2
• NIST ASD
• NIST ASD level energies
• Salih, Duquette, Lawler, Phys. Rev. A 27, 1193 (1983), as printed in the lifetime column …

Lifetimes are the 35 Salih-Duquette-Lawler (1983) values as reprinted in Den Hartog, Duquette, Lawler 1987 (method 'compilation'); branching ratios and gA are the 1987 measurements. The table was read through the publisher's HTML table view with a page reader, not from the PDF; every row was verified numerically (gA = (2J+1) BR / tau reproduces the printed gA within rounding) and every lower level was matched to a NIST level. A_s = gA/(2J+1) (derived). NIST ASD already lists A values from this paper (T4976); new here are lifetimes, branching ratios, uncertainties and the hyperfine constants. 181Ta (I = 7/2) is 99.988 % of natural tantalum, so all optical data refer to 181Ta. No laser-cooling transition is known for Ta.
