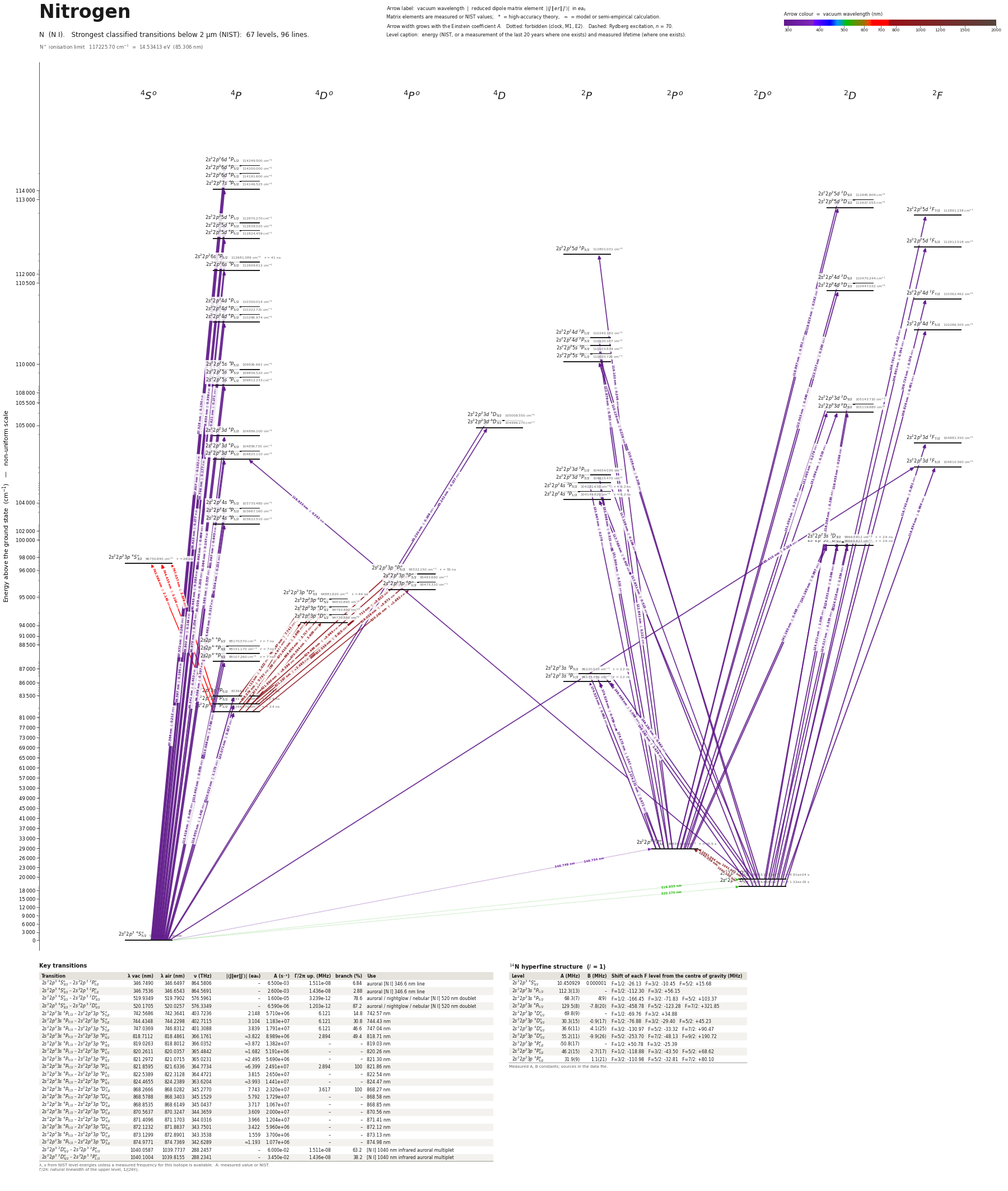

Nitrogen energy level diagram

Energy levels and transitions of neutral nitrogen (N I): the 96 strongest classified lines below 2 µm from the NIST Atomic Spectra Database and the 67 levels they connect, each line with its vacuum wavelength, frequency and, for 88 of them, the reduced dipole matrix element derived from the NIST transition rate. Measured lifetimes, transition rates, hyperfine constants and isotope shifts from the literature are included, each with its citation.

Hover a line or a level to isolate it, click to keep it selected. Scroll to zoom, drag to move.

Download: diagram (PDF) diagram (SVG) transitions (CSV) levels (CSV) source code

Key transitions of nitrogen

λ, ν from NIST level energies unless a measured frequency for this isotope is available. A: measured value or NIST. Γ/2π: natural linewidth of the upper level, 1/(2πτ).

¹⁴N hyperfine structure (I = 1)

Measured A, B constants; sources in the data file.

Closed and nearly closed transitions of nitrogen

A transition is closed when its upper level can decay only to the level it was excited from, so the atom keeps scattering photons. “closed”: among the levels NIST lists, no other level below the upper level has the opposite parity and |ΔJ| ≤ 1, so no other electric-dipole decay exists. Otherwise the leak is the sum of the branching ratios of the other decay lines of the upper level (or 1 − branching ratio where that of the line itself has been measured), and the number of photons is 1 / leak. “≥” and “≤”: at least one possible decay path has no listed rate, so the leak is a lower limit. These numbers are derived from the branching ratios, lifetimes and rates of this page, not measured as such; the tag names the weakest of the inputs, * marks theory and ≈ a model or semi-empirical calculation. Listed: lines that start on the ground level or on a metastable level and leak at most 10 %, unless more than three possible decay paths have no listed rate. Fine-structure levels only: hyperfine and Zeeman dark states and forbidden decays without a listed rate are not considered. Select a line in the diagram for the full list of its leak channels.

Listed N transitions below 2 µm

Reduced dipole matrix elements follow the convention A = ω³|d|²/(3πε₀ħc³(2J′+1)), with J′ the upper level. Tags show where a number comes from: measured, NIST compilation, high-accuracy theory, a semi-empirical calculation (Kurucz line list, used only where no measurement or NIST value exists; typically within a factor 2), or a model calculation.

N energy levels

N⁺ ionisation limit 117225.70 cm⁻¹ = 14.53413 eV (85.306 nm)

Sources

• Bengtsson, Larsson, Svanberg, Wang, Phys. Rev. A 45, 2712 (1992), Table I (two-photon LIF…
• Berry, Bickel, Bashkin, Desesquelles, Schectman, J. Opt. Soc. Am. 61, 947 (1971), as quot…
• Bridges & Wiese, Phys. Rev. A 82, 024502 (2010) (wall-stabilized arc emission), as tabula…
• Bromander, Duric, Erman, Larsson, Phys. Scr. 17, 119 (1978), as quoted in Table 3 of M. C…
• Carette, Nemouchi, Joensson, Godefroid, Eur. Phys. J. D 60, 231 (2010), arXiv:1005.0953, …
• Dumont, Biemont, Grevesse (1974), as quoted in Table 3 of M. C. Li, W. Li, Joensson, Amar…
• Hirsch, Zimmerman, Larson, Ramsey, Phys. Rev. A 16, 484 (1977), abstract (atomic hydrogen…
• Kurucz, R. L., Can. J. Phys. 89, 417 (2011); semi-empirical line list gf0700.pos of 2014-…
• Musielok, Wiese, Veres, Phys. Rev. A 51, 3588 (1995) (wall-stabilized arc emission), as t…
• NIST ASD
• NIST ASD N I lines table with forbidden lines (accuracy B to D). Note: derived: 1/sum(A) …
• NIST ASD level energies
• NIST ASD lines table with forbidden lines enabled; NIST gives no measurement for this lin…

Level energies are NIST ASD values. Hyperfine: A, B in MHz, positive A means the larger F lies higher; 14N I=1, 15N I=1/2 (no B). The excited-state hyperfine constants are a re-analysis (Carette et al. 2010) of published spectra, not a new measurement: treat their uncertainties as indicative. "specific_mass_shift_MHz" is a non-schema key holding the only isotope-shift information that could be read (see not_found). A values of the 3s-3p lines are second-hand (arc-emission experiments quoted in arXiv:2302.00228); further measured A values for 3p-3d, 3p-5s, 3s-4p lines are in Table 6 of that paper and were not transcribed. TALIF schemes: 2p3 4S°3/2 -> 3p 4S°3/2 by two photons of 206.67 nm (fluorescence 742.4/744.2/746.8 nm air), calibrated against Kr 2x204.13 nm; 2p3 4S°3/2 -> 3p 4D°7/2 by two photons of 210.8 nm (fluorescence 868 nm). Forbidden-line A values are NIST critically evaluated calculations (the cached data/nist line file does not contain them); the entries with type M1 and E2 at the same wavelength are the two multipole parts of one line. Sources were located through arXiv/DataCite, CORE, HAL, Crossref and publisher abstract pages; the web-search quota of the session was exhausted, so coverage is limited to what those indexes exposed.
