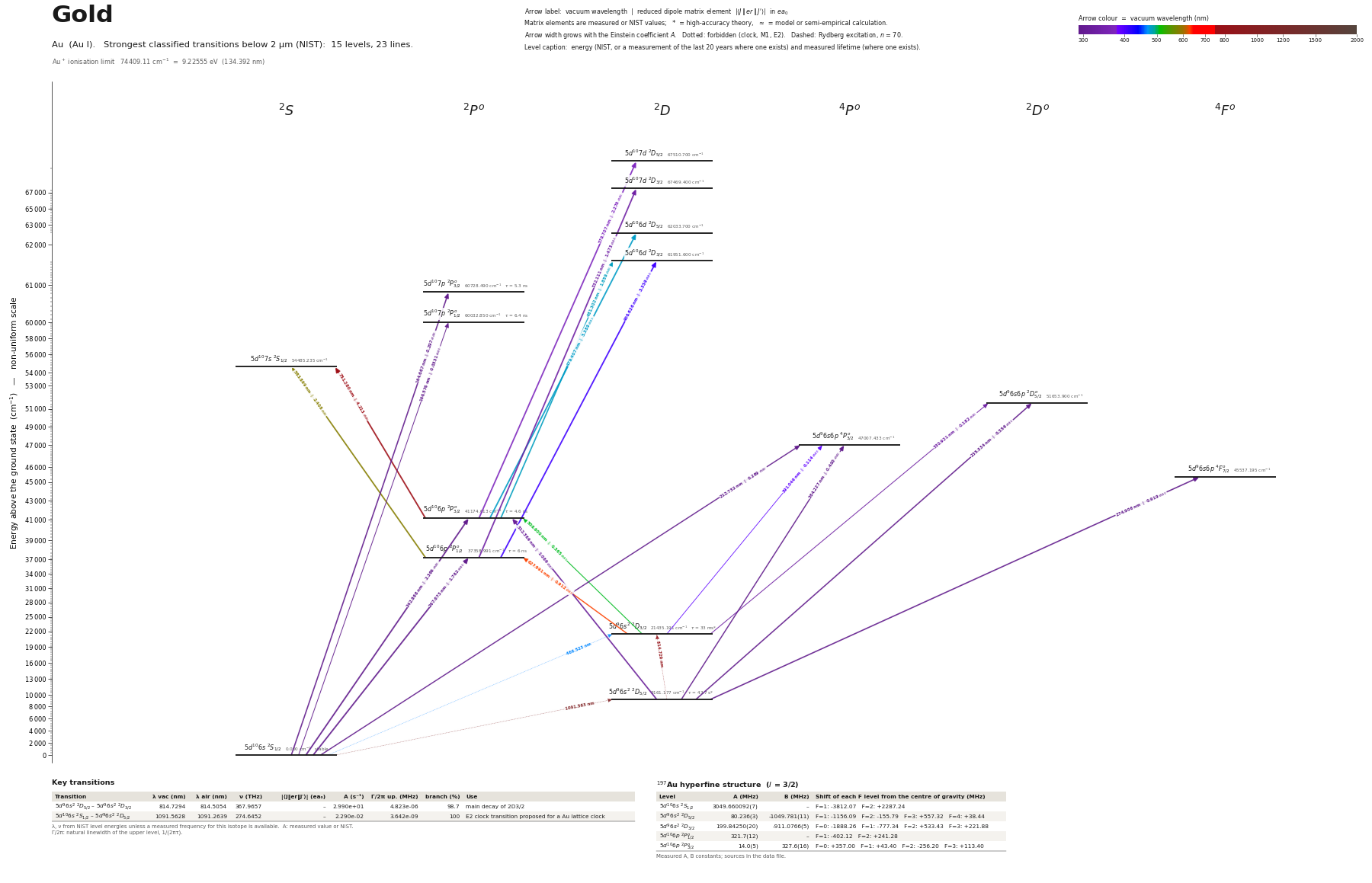

Gold energy level diagram

Energy levels and transitions of neutral gold (Au I): the 23 strongest classified lines below 2 µm from the NIST Atomic Spectra Database and the 15 levels they connect, each line with its vacuum wavelength, frequency and, for 20 of them, the reduced dipole matrix element derived from the NIST transition rate. Measured lifetimes, transition rates, hyperfine constants and isotope shifts from the literature are included, each with its citation.

Hover a line or a level to isolate it, click to keep it selected. Scroll to zoom, drag to move.

Download: diagram (PDF) diagram (SVG) transitions (CSV) levels (CSV) source code

Key transitions of gold

λ, ν from NIST level energies unless a measured frequency for this isotope is available. A: measured value or NIST. Γ/2π: natural linewidth of the upper level, 1/(2πτ).

¹⁹⁷Au hyperfine structure (I = 3/2)

Measured A, B constants; sources in the data file.

Closed and nearly closed transitions of gold

A transition is closed when its upper level can decay only to the level it was excited from, so the atom keeps scattering photons. “closed”: among the levels NIST lists, no other level below the upper level has the opposite parity and |ΔJ| ≤ 1, so no other electric-dipole decay exists. Otherwise the leak is the sum of the branching ratios of the other decay lines of the upper level (or 1 − branching ratio where that of the line itself has been measured), and the number of photons is 1 / leak. “≥” and “≤”: at least one possible decay path has no listed rate, so the leak is a lower limit. These numbers are derived from the branching ratios, lifetimes and rates of this page, not measured as such; the tag names the weakest of the inputs, * marks theory and ≈ a model or semi-empirical calculation. Listed: lines that start on the ground level or on a metastable level and leak at most 10 %, unless more than three possible decay paths have no listed rate. Fine-structure levels only: hyperfine and Zeeman dark states and forbidden decays without a listed rate are not considered. Select a line in the diagram for the full list of its leak channels.

Listed Au transitions below 2 µm

Reduced dipole matrix elements follow the convention A = ω³|d|²/(3πε₀ħc³(2J′+1)), with J′ the upper level. Tags show where a number comes from: measured, NIST compilation, high-accuracy theory, this site's own Cowan-code calculation with the parameters fitted to the NIST energies (HFR fit; inputs and fit report in the repository folder cowan/; used only where nothing else gives a rate; strong lines typically within a factor 2, weak lines worse), or a model calculation.

Au energy levels

Au⁺ ionisation limit 74409.11 cm⁻¹ = 9.22555 eV (134.392 nm)

Sources

• Blachman, Landman, Lurio, Phys. Rev. 161, 60 (1967), abstract; same numbers in Itano, Phy…
• Childs, Goodman, Phys. Rev. 141, 176 (1966), abstract; same numbers in Itano, Phys. Rev. …
• Dahmen, Penselin, Z. Phys. 200, 456 (1967) (atomic-beam magnetic resonance), as quoted wi…
• Dzuba, Allehabi, Flambaum, Li, Schiller, Phys. Rev. A 103, 022822 (2021), Table I (CIPT; …
• Dzuba, Allehabi, Flambaum, Li, Schiller, Phys. Rev. A 103, 022822 (2021), Table I (CIPT; …
• Dzuba, Allehabi, Flambaum, Li, Schiller, Phys. Rev. A 103, 022822 (2021), Table I footnot…
• Dzuba, Allehabi, Flambaum, Li, Schiller, Phys. Rev. A 103, 022822 (2021), Table II (E2, C…
• Dzuba, Allehabi, Flambaum, Li, Schiller, Phys. Rev. A 103, 022822 (2021), Table II (M1 on…
• Dzuba, Allehabi, Flambaum, Li, Schiller, Phys. Rev. A 103, 022822 (2021), Table II (M1, a…
• Einfeld, Ney, Wilken, Z. Naturforsch. A 26, 668 (1971), abstract (Crossref record) (level…
• Gaarde, Zerne, Luo Caiyan, Jiang Zhankui, Larsson, Svanberg, Phys. Rev. A 50, 209 (1994),…
• NIST ASD
• NIST ASD level energies
• Passler, Rikovska, Arnold, Kluge, Monz, Neugart, Ravn, Wendt, Nucl. Phys. A 580, 173 (199…

197Au is the only stable isotope (I = 3/2). Hyperfine B constants of the 5d9 6s2 2D levels are large and negative; C is the magnetic-octupole constant from the same atomic-beam papers (extra key C_MHz). All A_s and rme_J_ea0 entries are CIPT theory from Dzuba et al. 2021 (method 'theory', accuracy poor for E1: compare the 6p lifetimes) and are given only for the E2/M1 lines NIST does not list (2S1/2-2D5/2 clock, 2S1/2-2D3/2, 2D5/2-2D3/2, 2P1/2-2P3/2). No E1 entries are given: the NIST A values already rest on the Hannaford lifetimes and branching ratios, and the CIPT E1 rates of Dzuba et al. (2.45e8, 3.02e8 s^-1 for the resonance lines) are about 50 % too large. rme convention: A = 2.02613e18 |d|^2 / (lambda_vac[Angstrom]^3 (2J'+1)), J' upper level (the convention of Dzuba's Eq. 3). Extra keys beyond the schema: ionization_energy, g_J_ratio_to_Cs133, E2_amplitude_au, C_MHz, lifetime_alternatives. Second pass: 7p 2P lifetimes and 6p alternatives come from the abstract of Gaarde et al., Phys. Rev. A 50, 209 (1994); the 6p 2P3/2 width of Goldmann et al. 1969 was read in a Wayback Machine copy of the Springer abstract page. Third pass (2026-10-02): ground-state A with full precision, 6p 2P1/2 A (second-hand, see conflicts) and the branching ratios of the two resonance lines (0.98(1) and 0.911(4), Hannaford's 1986 review) added; 'branching' on the 267.6 and 242.8 nm transitions is the fraction of the 6p decay that goes to the ground level.
