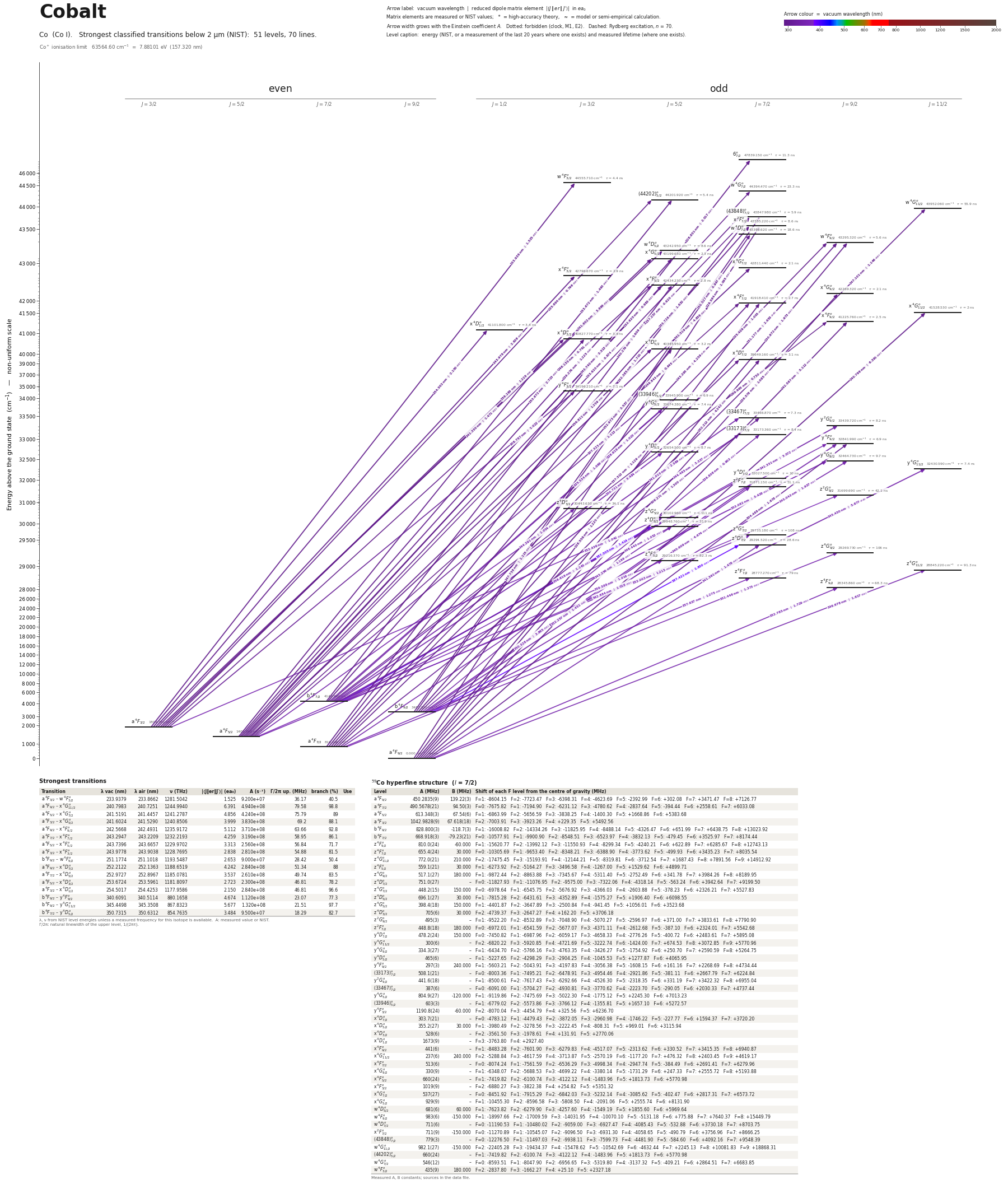

Cobalt energy level diagram

Energy levels and transitions of neutral cobalt (Co I): the 70 strongest classified lines below 2 µm from the NIST Atomic Spectra Database and the 51 levels they connect, each line with its vacuum wavelength, frequency and, for 70 of them, the reduced dipole matrix element derived from the NIST transition rate. Measured lifetimes, transition rates, hyperfine constants and isotope shifts from the literature are included, each with its citation.

Hover a line or a level to isolate it, click to keep it selected. Scroll to zoom, drag to move.

Download: diagram (PDF) diagram (SVG) transitions (CSV) levels (CSV) source code

Strongest transitions of cobalt

λ, ν from NIST level energies unless a measured frequency for this isotope is available. A: measured value or NIST. Γ/2π: natural linewidth of the upper level, 1/(2πτ).

⁵⁹Co hyperfine structure (I = 7/2)

Measured A, B constants; sources in the data file.

Closed and nearly closed transitions of cobalt

A transition is closed when its upper level can decay only to the level it was excited from, so the atom keeps scattering photons. “closed”: among the levels NIST lists, no other level below the upper level has the opposite parity and |ΔJ| ≤ 1, so no other electric-dipole decay exists. Otherwise the leak is the sum of the branching ratios of the other decay lines of the upper level (or 1 − branching ratio where that of the line itself has been measured), and the number of photons is 1 / leak. “≥” and “≤”: at least one possible decay path has no listed rate, so the leak is a lower limit. These numbers are derived from the branching ratios, lifetimes and rates of this page, not measured as such; the tag names the weakest of the inputs, * marks theory and ≈ a model or semi-empirical calculation. Listed: lines that start on the ground level or on a metastable level and leak at most 10 %, unless more than three possible decay paths have no listed rate. Fine-structure levels only: hyperfine and Zeeman dark states and forbidden decays without a listed rate are not considered. Select a line in the diagram for the full list of its leak channels.

Listed Co transitions below 2 µm

Reduced dipole matrix elements follow the convention A = ω³|d|²/(3πε₀ħc³(2J′+1)), with J′ the upper level. Tags show where a number comes from: measured, NIST compilation, high-accuracy theory, a semi-empirical calculation (Kurucz line list, used only where no measurement or NIST value exists; typically within a factor 2), or a model calculation.

Co energy levels

Co⁺ ionisation limit 63564.60 cm⁻¹ = 7.88101 eV (157.320 nm)

Sources

• Childs & Goodman, Phys. Rev. 170, 50 (1968) (atomic-beam magnetic resonance), as tabulate…
• Lawler, Sneden, Cowan, Astrophys. J. Suppl. Ser. 220, 13 (2015), Table 3
• NIST ASD
• NIST ASD level energies
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Nitz, Bergeson, Lawler, J. Opt. Soc. Am. B 12, 377 (1995), Table 2 (time-resolved laser-i…
• Pickering, Astrophys. J. Suppl. Ser. 107, 811 (1996), Table 2 (Fourier-transform line-pro…

Level energies are the site's NIST values; Lawler 2015 and Pickering 1996 use the Pickering & Thorne (1996) energies, which differ by <0.1 cm-1 (matched on energy within 0.3 cm-1 and J). Hyperfine constants were printed in mK (1 mK = 0.001 cm-1) and converted to MHz. Pickering's B values carry no uncertainty and are approximate. Pickering 1996 was read from the ADS scan (OCR text checked against page images for Tables 1 and 2, pages 814, 817, 818). Nitz 1995 lifetimes could only be read through an automated reader of the publisher's page; each carries its cross-check. rme_J_ea0 derived from A (S = A g_upper lambda_vac^3 / 2.0261e18). NIST labels '°7/2' at 33173.36, 33466.87, 33945.9, 43847.98, 44201.92 correspond to Pickering's y4F7/2, y4G7/2, y4F5/2, w4F7/2, w4F5/2. WebSearch was unavailable in this session (budget exhausted).
